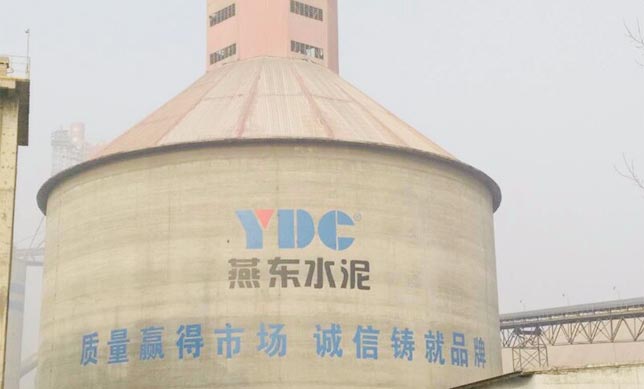

Tangshan Yandong Cement---5000TPD

Customer Reviews：

“Your burner is with high adjustment flexiblity and easy operation, superior than ***brand burner.

Project Introduction：

Since Huijin cement rotary kiln burner was used in Tangshan Yandong cement Co.,Ltd., the outstanding energy-saving, power-saving and productivity improvement effect was highly recognized by clients. The clinker 28-day strength have improved by 2MPa，cement standard coal consumption of per ton clincker reduced by 2kg and ammonia water consumption decreased by 33%.

contact

Technical parameter comparison table

The main parameters

Original burner

Huijin Burner
Coal consumption at kiln head（t/h）

14.0

13.5
Coal consumption at kiln tail（t/h)

17.0

16.5
Kiln Feeding（t/h）

410

415
Secondary air temperature（℃）

1130

1150
Tertiary air temperature（℃）

915

930
C1 outlet temperature（℃）

345

335
Kiln tail temperature（℃）

1180

1150
Primary air amount（m³/min）

145.8

76.0
Primary air pressure（kPa）

28.0

50
Primary air blower current(A)

230

223
Kiln head blower air amount（m³/min)

85.6

45
Kiln head blower air pressure（kPa）

28.0

31.0
Kiln head blower current (A)

215

145
Dosage of ammonia（t/h）

0.667

0.444
Clinker KH value

0.92

0.93
Clinker 3-day strength(MPa)

29

30
Clinker 28-day strength(MPa)

50

52
Standard coal consumption(kg/t)

92

90

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
