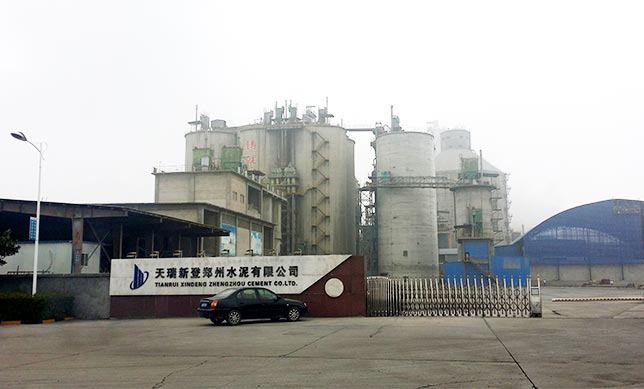

Tianrui Xindeng Cement Co.,Ltd.---5000t/d

Customer Reviews：

Tianrui Xindeng Cement Co.,Ltd. recommend to other clients: “ Huijin cement rotary kiln burner cut 2kg standard coal consumption for us. We can guarantee the high use efficiency, if not, we will pay for you.”

Project Introduction：

The primary air supply of Huijin cement rotary kiln burner is 5.7% only, with significant productivity improvement, coal and power-saving effects, can effectively reduce the standard coal consumption by more than 1-2kg, and decrease power consumption by 15%-35%.

contact

Technical parameter comparison table

The main parameters

Original burner

Huijin Burner
Coal consumption at kiln head（t/h）

11.2

10.8
Coal consumption at kiln tail（t/h)

20.5

20
Kiln feeding（t/h）

375

385
Secondary air temperature（℃）

1100

1100
Tertiary air temperature（℃）

880

920
C1 outlet temperature（℃）

325

320
Kiln tail temperature（℃)

1080

1050
Primary air amount（m³/min）

80

58
Primary air pressure（kPa）

30

40
Primary air blower current(A)

248

175
Kiln head blower air amount（m³/min)

50

50
Kiln head blower air pressure（kPa）

46

46
Kiln head blower current (A)

185

183
Clinker KH value

0.9

0.9
Clinker 3-day strength(MPa)

29

31

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
