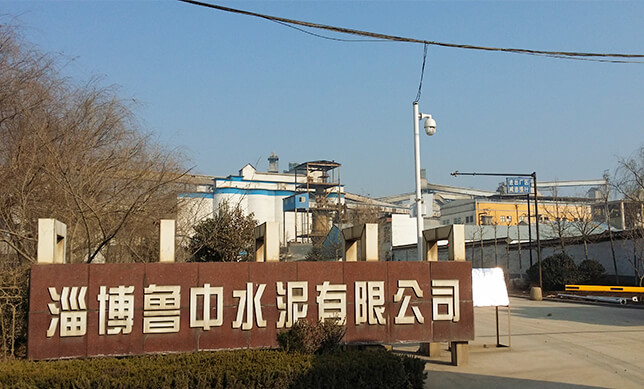

Zibo Luzhong Cement Co.,Ltd.---5000t/d

Customer Reviews：

"The burner quality is closely related to the cement clinker quality. Huijin cement rotary kiln burner is the right choice." Zibo Luzhong Cement Co.,Ltd leader commented.

Project Introduction：

Huijin cement rotary kiln burner is with primary air 5.7% only，superior flame shaping, high flame intensity and rigidity, stable flame performance. The standard coal consumption can be reduced by more than 1-2kg, power consumption decreased by 15%-35%.

contact

Technical parameter comparison table

The main parameters

Original burner

Huijin Burner
Coal consumption at kiln head（t/h）

11.5

11.3
Coal consumption at kiln tail（t/h)

15

14.9
Kiln Feeding（t/h）

385

390
Secondary air temperature（℃）

1050

1070
Tertiary air temperature（℃）

930

940
C1 outlet temperature（℃）

330

325
Primary air amount（m³/min）

200

80
Primary air pressure（kPa）

39

48
Primary air blower current (A)

280

160
Kiln head blower air amount（m³/min)

82

40
Kiln head blower air pressure（kPa）

17

24
Kiln head blower current (A)

95

101
Dosage of ammonia（t/h）

1.0

1.0
Clinker 3-day strength (MPa)

31

31.5
Standard coal consumption (kg/t)

99

98

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
