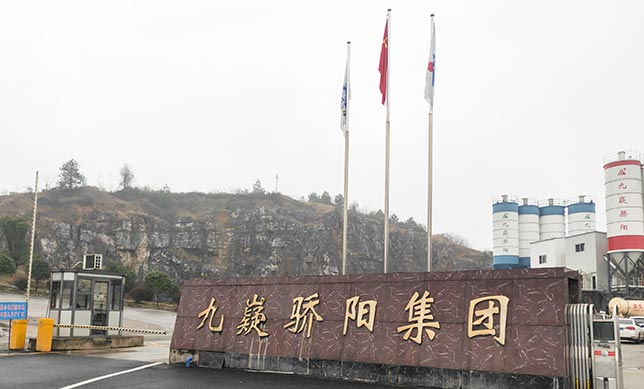

Jiuyi jiaoyang cement---2500t/d

Customer Reviews：

Huijin cement rotary kiln burner bring significant reduction in emissions, coal and power consumption.

Project Introduction：

Since Huijin cement rotary kiln burner was used in 2500t/d production line of Yongzhou Jiuyi Jiaoyang Cement Co., Ltd., its remarkable energy-saving, consumption-reducing and productivity-increasing effects have been well received by customers. The ammonia dosage is reduced by 5t/d, the cement 3-day clinker strength is increased by 1.5kPa, the cement clinker 28-day strength is increased by 1kPa, and the standard coal consumption of per ton of clinker is reduced by 0.5kg/t.

contact

Technical parameter comparison table

The main parameters

Original burner

Huijin Burner
Coal consumption at kiln head（t/h）

6

5.8
Coal consumption at kiln tail（t/h)

9.3

9.3
Kiln feeding（t/h）

185

190
Secondary air temperature（℃）

1020

1050
Tertiary air temperature（℃）

870

900
C1 outlet temperature（℃）

355

345
Kiln tail temperature(℃)

1050

1010
Primary air amount（m³/min）

70

34
Primary air pressure（kPa）

30

48
Primary air blower current(A)

200

102
KIln head blower air amount（m³/min)

35

18
Kiln head blower air pressure（kPa）

22

15
Kiln head blower current (A)

155

122
Dosage of ammonia（t/h）

11

6
Clinker KH value

0.9

0.9
Clinker 3-day strength(MPa)

30

31.5
Clinker 28-day strength(MPa)

55

56
Clincker standard coal consumption(kg/t)

112

111.5

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
