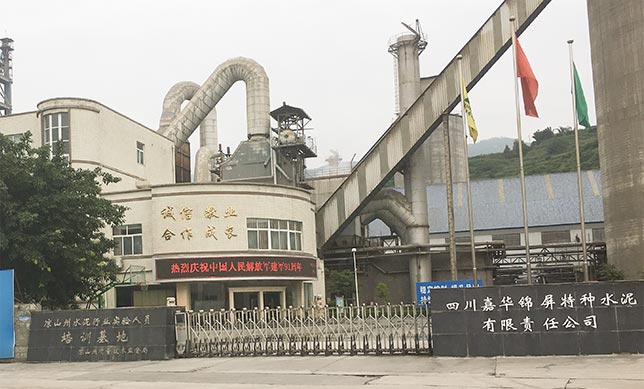

Jiahua Jinping Co.,Ltd.---Ammonia-free denitration technology transformation

Customer Reviews：

Jiahua Jinping Cement Co.,Ltd. commented: Through the Huijin denitration technical transformation , the NOx emissions was dramatically reduced, and other indicators also met the contract requirements.

Project Introduction：

Since Jiahua Jinping Cement 2500T/D production line used Ammonia-free Dentration Kiln Tail Sintering System, the ammonia water consumption was decreased from 16.39t/D to 14.38t/D, and the NOx emission was reduced from 330-390mg/Nm³ to 55-96mg/Nm³... All environmental indicators have meet emission legislation. The effect have been highly recognized by customers!

contact

Technical parameter comparison table

Main parameters

Before tansformation

After transformation
Coal consumption at kiln head（t/h）

6.1-6.5

5.6-6
Coal consumption at kiln tail（t/h)

8.4-9.2

8-8.4
Kiln feeding（t/h）

190

190
Secondary air temperature（℃）

980-1040

980-1040
Tertiary air temperature（℃）

820-880

840-890
C1 outlet temperature（℃）

320-345

320-340
Kiln tail temperature（℃)

1010-1100

1005-1080
NOx standard（mg/Nm³）

Below 400

Below 400
NOx actural emission（mg/Nm³）

330-390

55-96
Ammonia consumption（m³/h）

646-720

563-636
O2 emission（%）

7.4-8

6.9-7.2
Clinker KH value

0.920

0.920
Clinker 3 days strength（MPa）

34

34
Clinker 28 days strength（MPa）

Updating

Updating
Clinker standard coal（kg/t）

Updating

Updating

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
