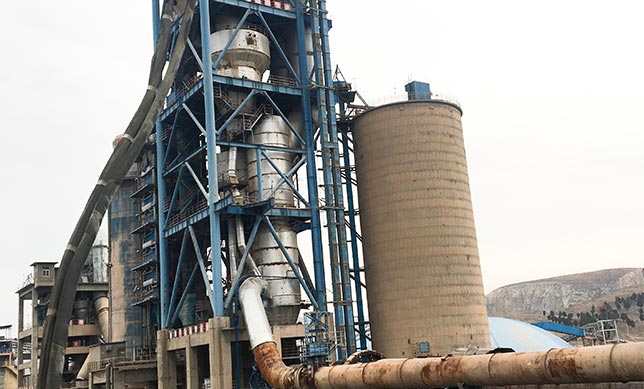

Taiyangshi cement Group---Ammonia-free denitration technology transformation

Customer Reviews：

Taiyandshi Cement Group commented:" Huijin Ammonia-free Dentration Kiln Tail Sintering SystemTechnology Transformation have perfect effect, the standard coal consumption of per ton of clinker was reduced by 2kg. we are satisifed with that .

Project Introduction：

Since Ammonia-free Denitration Kiln Tail Sintering System technical transformation was used in Henan Taiyangshi Cement Group, reducing the ammonia water consumption from 14,4 t/day to 11.52 t/day, saving expense of ammonia water for 470,000 CNY per year, and reducing the NOx emissions from ≤250mg/Nmm³ to ≤150mg/Nm3.

contact

Technical parameter comparison table

Technical parameters

Before transformation

After transformation
Coal consumption at kiln head（t/h）

7.5

7.4
Coal consumption at kiln tail（t/h)

10.5

10.5
Kiln feeding（t/h）

212

210
Secondary air temperature（℃）

1100

1130
Tertiary air temperature（℃）

900

920
C1 outlet temperature（℃）

325

315
Kiln tail temperature（℃)

1160

1150
NOx standard（mg/Nm³）

≤320

≤320
NOx actural Emission（mg/Nm³）

≤250

≤150
Ammonia consumption（m³/h）

600

480
O2 emission（%）

7.8

7.8
Clinker KH value

0.92

0.92
Clinker 3 days strength（MPa）

31

Updating
Clinker 28 days strength（MPa）

61

Updating
Clinker standard coal（kg/t）

105

Updating

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
