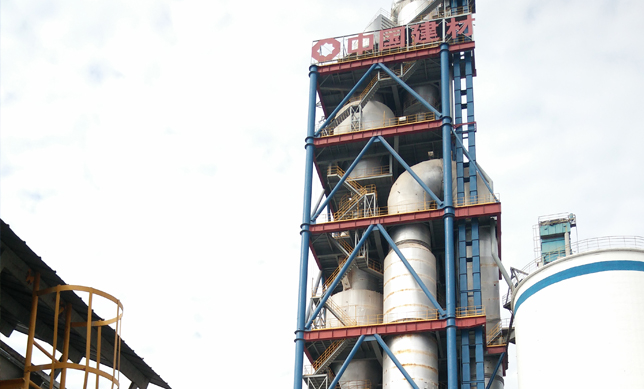

Chuzhou Zoomlion Cement Co., Ltd.---2500T/D

Customer Reviews：

Huijin Intelligent Equipment Co.,Ltd. is not only famous for superior energy-saving products but also for top-level pre-sale and after-sale service.

Project Introduction：

Since Huijin cement rotary kiln burner was used in Chuzhou Zoomline Cement Co., Ltd., its excellent energy-saving and consumption-reducing effect have been well recognized by customers. The fuel burnout rate is greater than 99%, clinker standard coal consumption per ton is reduced by 1.5kg, and kiln tail temperature is also reduced to a certain degree.

contact

Technical parameter comparison table

The main parameters

Original burner

Huijin Burner
Coal consumption at kiln head（t/h）

8.1

7.8
Coal consumption at kiln tail（t/h)

12.15

12.1
Kiln feeding（t/h）

210

210
Secondary air temperature（℃）

1080

1070
Tertiary air temperature（℃)

930

935
C1 outlet temperature（℃)

347

333
Kiln tail temperature（℃）

1120

1080
Primary air amount（m³/min）

80

58.8
Primary air pressure（kPa）

36

46
Primary air blower current (A)

141

151
Kiln head blower air amount（m³/min)

37.5

37.5
Kiln head blower air pressure（kPa）

13.5

26.5
Kiln head blower current(A)

41

51
Dosage of ammonia（t/d）

5.46

5.61
Clinker KH value

0.89

0.89
Clinker 3-day strength(MPa)

29.6

29.6
Clincker standard coal consumption(kg/t)

116.5

115

Project Introduction

Customer Reviews：

Huijin cement rotary kiln burner has perfect power-saving effect, the ammonia dosage is also significantly reduced.

Customer Reviews：

Huijin cement rotary kiln burner have stable and powerful flame, which indirectly prolong kiln lining service life, and with high flexibility adapt to low value pulverized coal.
