- Fuel saving 3%-5% and power saving 10%-20%

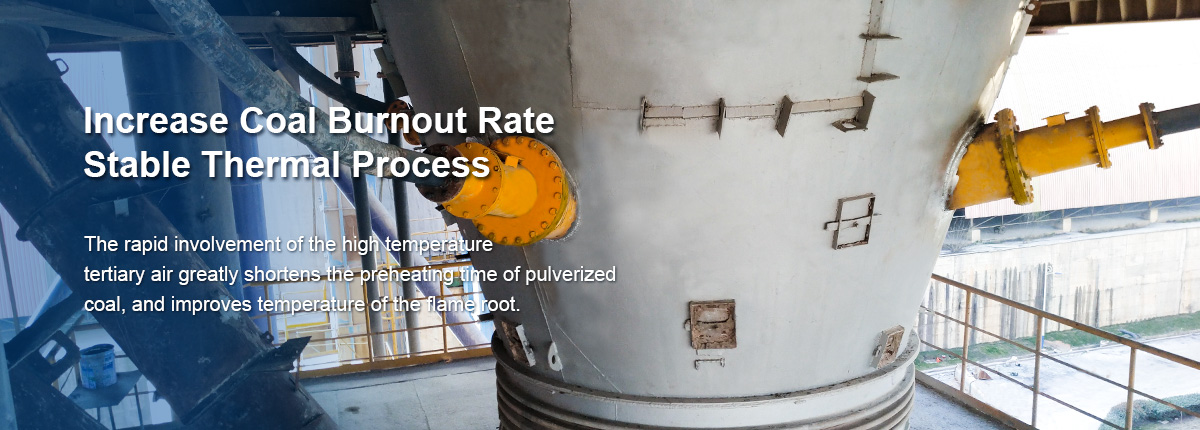

- Shorten pulverized coal pre-heating time
- Optimizing and stabilize decomposition furnace thermal process
- Burnout rate of pulverized coal is more than 98%
| Model | Kiln capacity | Coal injection （t/h） | Pulverized coal wind speed （m/s） | Coal blower parameter | Main coal supply pipeline | Two distributed coal pipeline | Four distributed coal pipeline | Quantity | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Current （m3/min） | pressure （KPa） | power （KW） | ||||||||
| HJ-YW1500 | 1500T/D | 8-12 | 25-28 | 25 | 49 | 45 | ф180*8 | ф146*8 | - | 2 |
| HJ-YW2500 | 2500T/D | 12-16 | 25-28 | 40 | 49 | 55 | ф194*8 | ф146*8 | - | 2 |
| HJ-YW3200 | 3200T/D | 14-18 | 25-28 | 48 | 49 | 75 | ф219*8 | ф180*8 | - | 2 |
| HJ-YW4000 | 4000T/D | 16-22 | 25-28 | 60 | 58.8 | 90 | ф229*8 | ф180*8 | ф146*8 | 4 |
| HJ-YW5000 | 5000T/D | 18-26 | 25-28 | 72 | 58.8 | 110 | ф245*8 | ф180*8 | ф146*8 | 4 |
| HJ-YW6000 | 6000T/D | 20-28 | 25-28 | 80 | 58.8 | 132 | ф273*8 | ф203*8 | ф180*8 | 4 |
| HJ-YW7500 | 7500T/D | 22-30 | 25-28 | 96 | 58.8 | 160 | ф299*8 | ф219*8 | ф203*8 | 4 |
| HJ-YW10000 | 10000T/D | 32-40 | 25-28 | 146 | 58.8 | 200 | ф325*8 | ф245*8 | ф219*8 | 4 |
1 Pulverized coal conveying technology of high gas-solid ratio, low air volume, the amount of cold air enter into the decomposition furnace greatly reduced, remarkable energy saving effect.

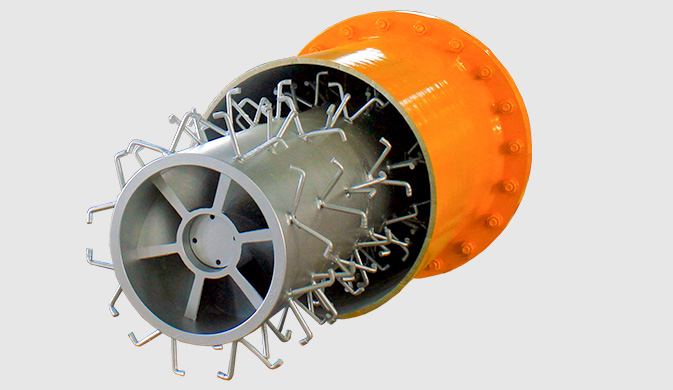

2 The pulverized coal diffused evenly into the calciner by the Huijin strong swirl kiln tail burner , enhanced the stability of thermal process in decomposition furnace.
3 The whole burner and head parts can be detached and assembled easily, convenient maintenance and replacement.
4 The flue gas emitted by the burner is 0-1 level of ringelman emittance.
5 The fixed carbon content of ash residue in the burner is about 0.1%.
6 The proportion of coal air flow enter into the calciner is less than 1.8%.
7 The service life of the burner head is more than 2 years.
8 The relative momentum range is 1200m/s-1500m/s.
9 The average wind speed of the coal wind is about 25m/s.
10 The gas-solid ratio of pulverized coal gas transport is controlled within 5kg/m³ to 7kg/m³.
