- Lower NOx emission and minimize environment footprint
- Reduce ammonia water consumption by more than 60%
- Reduce coal and power consumption
- High calciner burnout rate, high thermal efficiency
- No oversintering, no crusting and clogging
- Reduce the production cost of cement clinker
- Increase the output by 5%-10%
- Lower investment and high return
1 High-strength reduction denitration of decomposing furnace Huijin ammonia-free denitration kiln tail sintering system is free of air separation and coal separation process. On the one hand, NOx is reduced and extruded during combustion process. On the other hand, the decomposition rate and temperature of the materials fed into the kiln can be increased without crusting thus to develop high-strength reduction combustion control technology of decomposing furnace.
2 Optimized control of coal used at kiln head and taill The ammonia-free denitration kiln tail sintering system adjusts the appropriate head and tail coal consumption ratio by appropriately reducing the coal consumption at the kiln head; while increasing the coal consumption ratio of decomposing furnace.

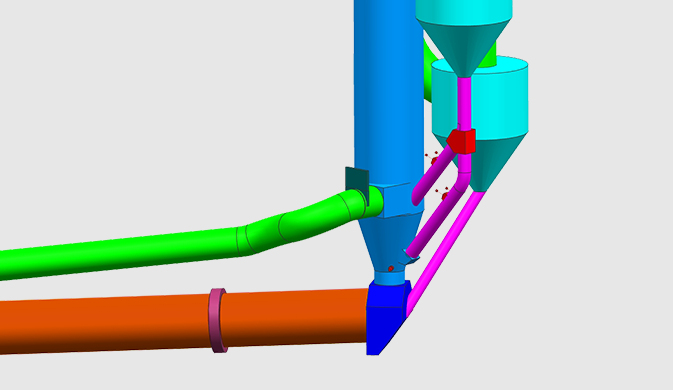

1 Moving the kiln tail burner to lower position, leaving sufficient reduction space and make coal burn in anoxic condition.
2 Optimizing the SNCR system and changing the position of the atomizing gun, and installing Huijn patented atomizing gun to improve the utilization rate of ammonia water, ensuring the best denitration effect.
3 Changing the C3 single-tube blanking to dual-tube blanking. The newly added C3 discharge pipe was installed on the appropriate position of the calciner cone and the upper part of the kiln tail burner, prevent crusting formation.
4 The tertiary air pipe is raised and moved to the proper position of calciner straight section, to extend distance and gurantee enough reduction reaction space.
- NOxcontrol
technology - Lower NOx
burner - Grading
combustion - SNCR
- SCR
- Grading combustion
+SCR - Huijin denitration technology
- Efficiency of denitration
- 10%-15%
- 25%-30%
- 40%-60%
- 85%-90%
- 50%-60%
- 60%-70%
Strong supporting the production capacity, with long term accumulation of technical experience, to improve the quality of the pursuit, to provide 100% client Satisfaction guaranteed products and services.
With innovative production technology, it is far ahead of the same industry in rotary kiln burner and circulating water treatment equipment and ammonia-free denitration system transformations.
Full complete R&D technical team, We only hire seasoned, professional technicians with at least 5 years’ experience. Several of our technical staff member have 10 -25 years in the industry. At Huijin, our engineers are not only highly-trained experts in their field, but also friendly and easy to work with.
Great customer service is crucial to the growth of Huijin. No matter with determining design consultancy, or later after sale service, we offers 24 hour, Emergency Service, 7 days a week, 365 days a year, so you never have to worry when you have an emergency after hours or on a weekend or holiday!
